Air is drawn in through an inlet on the outside of the solid vortex. The air enclosed in the compressed space is reduced by the compression movement of the compression chamber, facing the center of the compression.
SEND INQUIRY NOW
In industries where compressed air contacts the final product — electronics assembly, food packaging, pharmaceutical production, medical devices — even trace oil contamination can cause defects, recalls, or safety hazards. The ZIQI OF Series Oil-Free Scroll Air Compressor eliminates this risk at the source: no oil ever enters the compression chamber, delivering ISO 8573-1 Class 0 certified air purity.
Unlike oil-free rotary screw compressors that rely on precision-machined tolerances and external cooling systems, scroll technology uses a fundamentally simpler compression mechanism — two interlocking spirals with no metal-to-metal contact. The result: low noise from 63 dB(A), minimal vibration, exceptional reliability, and zero risk of oil carry-over. Available in 9 models from 2.2 to 37 kW with modular multi-scroll architecture and hierarchical smart control, the OF series provides clean, efficient, and redundant compressed air for the most demanding applications.

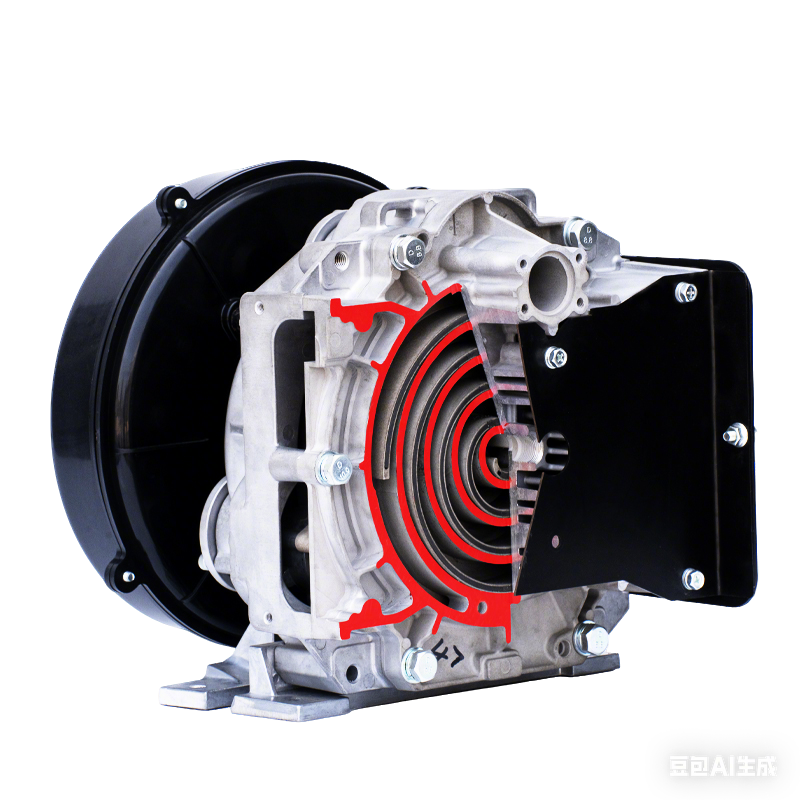

The scroll air end uses two precision-machined spiral elements — one fixed, one orbiting. Air is drawn into the outer edge, progressively compressed in crescent-shaped chambers, and discharged from the center at full pressure. No oil ever touches the air.
Purity: ISO 8573-1 Class 0 — zero oil in compression
Motion: Orbiting scroll — no metal-to-metal contact
Vibration: Near-zero pulsation for stable air delivery
Lifespan: 60,000+ hour tip seal life expectancy
Models from OF-7.5A upward house multiple independent scroll air ends in a single chassis. The hierarchical controller activates only the units needed — matching output to real-time demand while providing built-in redundancy.
Modules: Up to 4×10 scroll units in OF-37A
Control: Hierarchical load matching — saves up to 30% energy
Redundancy: Other units run if one needs service
Display: Touch LCD — maintenance, faults, remote output
ISO 8573-1 Class 0 certified. No oil injection, no downstream oil removal needed. Zero contamination risk.
63–79 dB(A) across the range — significantly quieter than oil-free piston compressors (85–95 dB(A)).
Multiple scroll units per machine. If one unit needs service, others continue — near-zero production downtime.
Smart controller matches running units to real-time demand. Avoids wasteful idling. Saves up to 30% energy.
No oil changes. No oil filters. No oil separator. Just air filter service and occasional tip seal inspection.
Standard touch screen with maintenance alerts, fault display, remote output terminals, and auto power-failure restart.
| Feature | Oil-Injected Screw + Filters | Oil-Free Piston | ZIQI OF Oil-Free Scroll |
|---|---|---|---|
| Oil Content in Air | 0.01 mg/m³ (filter dependent) | 0 mg/m³ | 0 mg/m³ — Class 0 Certified |
| Contamination Risk | High — filter bypass or failure | None | None — no oil in system |
| Noise Level | 65–78 dB(A) | 85–95 dB(A) | 63–79 dB(A) — quieter than piston |
| Vibration | Moderate | High — reciprocating action | Near-zero pulsation |
| Redundancy | Single point of failure | Single point of failure | Multi-scroll — built-in redundancy |
| Maintenance | Oil + oil filter + separator + air filter | Piston rings + valves + air filter | Air filter + tip seal only — no oil service |
| Point-of-Use Install | No — needs compressor room | No — too loud | Yes — compact & quieter than alternatives |
| Energy at Partial Load | Wastes energy idling | On/off cycling — high wear | Hierarchical control — only run needed units |
| Model |
Power (kW) |
FAD @ 0.8 MPa (L/min) |
FAD @ 1.0 MPa (L/min) |
Noise dB(A) |
Scroll Config |
Dimensions L×W×H (mm) |
Weight (kg) |
Outlet |
|---|---|---|---|---|---|---|---|---|
| OF-2.2A | 2.2 | 240 | 205 | 63±3 | 1×2.2 | 540×680×920 | 135 | Rc 3/8 |
| OF-3.7A | 4.0 | 405 | 350 | 67±3 | 1×4.0 | 540×680×920 | 151 | Rc 3/8 |
| OF-5.5A | 5.5 | 600 | 440 | 67±3 | 1×5.5 | 860×720×1120 | 185 | Rc 3/4 |
| OF-7.5A | 4×2 | 820 | 700 | 70±3 | 4×2 | 1100×740×1080 | 395 | Rc 3/4 |
| OF-11A | 4×3 | 1,230 | 1,060 | 73±3 | 4×3 | 1100×740×1680 | 465 | Rc 1 |
| OF-15A | 4×4 | 1,645 | 1,415 | 75±3 | 4×4 | 1100×740×1680 | 550 | Rc 1 |
| OF-22A | 4×6 | 2,540 | 2,080 | 76±3 | 4×6 | 1440×1140×1600 | 915 | Rc 1½ |
| OF-30A | 4×8 | 3,400 | 2,800 | 79±3 | 4×8 | 1440×1140×2350 | 1,065 | Rc 1½ |
| OF-37A | 4×10 | 4,050 | 3,500 | 79±3 | 4×10 | 1440×1140×2350 | 1,200 | Rc 1½ |
* All FAD values measured per ISO 1217 at stated pressure. Electric supply: 380V / 3ph / 50Hz (440–460V / 3ph / 60Hz available). Cooling: Air-cooled. Starting method: Direct start. All models 100% oil-free — ISO 8573-1 Class 0. Contact us for exact configuration and pricing.
Tell us your industry, required flow rate, and air quality standard. We'll recommend the exact OF model — or an OFD/OFW alternative if your flow demand exceeds 37 kW.
* All air delivery values measured in FAD per ISO 1217. Specifications subject to change without notice. Contact ZIQI for exact configuration and pricing.
| Model | Exhaust pressure | Air flowing | Motor power | Driving mode&Cooling method | Dimension | Weight | Noise | Air outlet pipe | |||||
| mpa | bar(e) | psi(g) | L/min | hp | kw | L(mm) | W(mm) | H(mm) | Kgs | dB(A) | mm | ||
| OF-2.2A | 0.8 | 8 | 116 | 240 | 3 | 2.2 | Belt drive&Air cooling | 540 | 680 | 920 | 135 | 46±3 | Rc 3/8 |
| 1 | 10 | 145 | 205 | ||||||||||
| OF-3.7A | 0.8 | 8 | 116 | 405 | 5 | 3.7 | 540 | 680 | 920 | 151 | 50±3 | Rc 3/8 | |
| 1 | 10 | 145 | 350 | ||||||||||
| OF-7.5A | 0.8 | 8 | 116 | 820 | 10 | 7.5 | 1100 | 740 | 1080 | 395 | 53±3 | Rc 3/4 | |
| 1 | 10 | 145 | 700 | ||||||||||
| OF-11A | 0.8 | 8 | 116 | 1230 | 15 | 11 | 1100 | 740 | 1680 | 465 | 56±3 | Rc1 | |
| 1 | 10 | 145 | 1060 | ||||||||||
| OF-15A | 0.8 | 8 | 116 | 1645 | 20 | 15 | 1100 | 740 | 1680 | 550 | 58±3 | Rc1 | |
| 1 | 10 | 145 | 1415 | ||||||||||
| OF-22A | 0.8 | 8 | 116 | 2540 | 30 | 22 | 1100 | 1450 | 1680 | 915 | 59±3 | Rc 1/2 | |
| 1 | 10 | 145 | 2080 | ||||||||||
| OF-30A | 0.8 | 8 | 116 | 3400 | 40 | 30 | 1100 | 1450 | 1680 | 1065 | 59±3 | Rc 1/2 | |
| 1 | 10 | 145 | 2800 | ||||||||||
